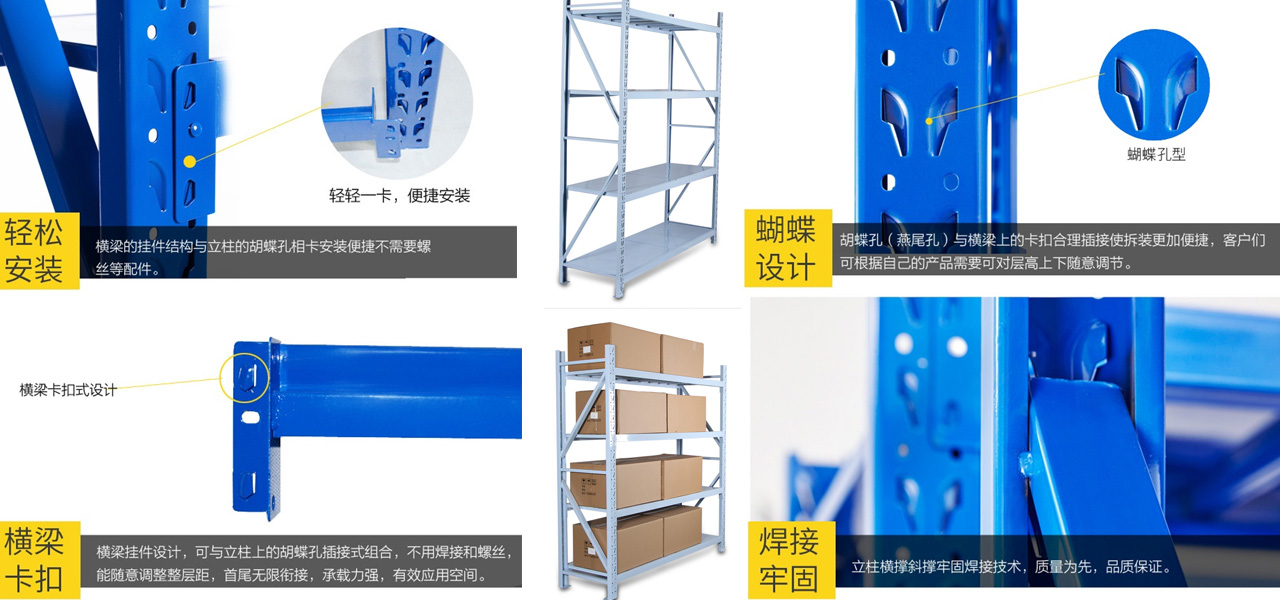

Medium B shelf adopts bolt-free design, easy to install and reliable structure. Using steel plate, column, cross beam, the whole shelf is fixed without bolts, easy to install and disassemble. The main and auxiliary connection forms are adopted, and the stability is strong.
Medium B shelf features:
1. Easy to install, bolted connection, with main connection and secondary connection, can achieve maximum stability.
2. The top, bottom, frame connecting rod, column tray, chips and inserts of the B-type shelf are fixed by pins and easy to operate.

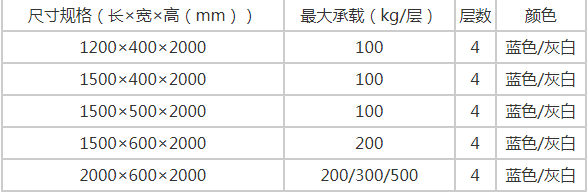

3. The maximum load carrying relative length is 300 kg/layer. The laminate can be adjusted freely up and down at a distance of 50mm.
4. The surface of medium B shelf is rusted and sprayed.
5. Surface color can be selected according to customers choice. The overall appearance of the shelf is firm and durable.
6. The relevant specifications of B-pillar are: 55 x 5.5 x 1.5 mm special frame column configuration file.
7. It is stamped and flattened automatically by high-quality steel rolling mill and cut off according to the height specified by customers.
8. Column pallet connecting rod is stamped and stamped with high quality cold plate.
9. Slab is made of high quality cold plate (SPCC), notch, open flat bending and welding reinforcement.
10. No bolt connection, simple disassembly and assembly, beautiful appearance, multi-layer shelf can be assembled.
